DasMikro PSX0.6.1 Flysky GT3C Transmitter 8CH With Position Toggle Switc Externa

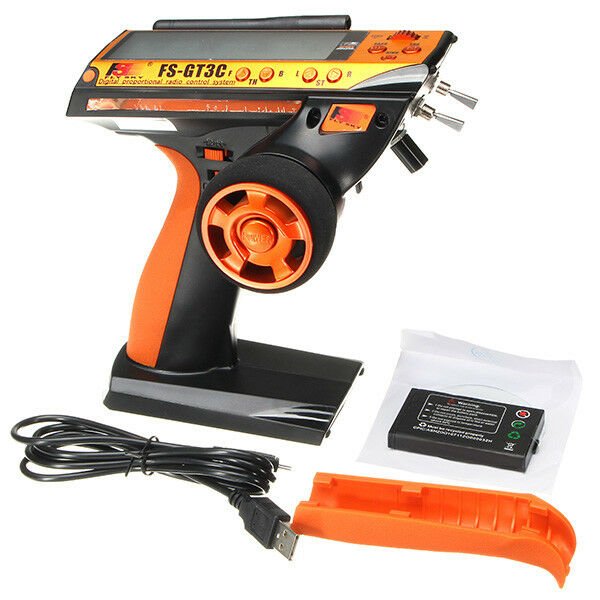

≡ Show Menu DasMikro PSX0.6.1 Flysky GT3C Transmitter 8CH With Position Toggle Switc Externa Description Item Description DasMikro PSX0.6.1 Flysky GT3C Transmitter 8CH With Position Toggle Switc External Potentiometers Description: This is a FLYSKY GT3C RC transmitter stock hardware with customized PSX0.6.1 firmware. It could bind with FLYSKY 3CH, 6CH and 8CH receivers. It add a 4 channel PPM expander PCB and keep the CH1- CH4 channel from PSX0.6.1 firmware, adding 4 channels from channel 5 to channel 8, in this case you could bind FLYSKY 8CH receiver to use all 8 channels. (channel 1, channel 2, channel 3 and channel 4 are from GT3C PSX0.6.1 firmware, channel 5 and channel 6 are external 3 position toggle switch, channel 7 and channel 8 are external potentiometers. 1.Programmed with customized PSX0.6.1 firmware 2.Steering and throttle potentiometer was calibrated 3.Battery voltage was calibrated 4.Test model M00 was set to 4CH, CH3.TRIM control CH3 CH3 Button controls CH4 PSX0.6.1 Firmware Information:The 0.6.1 Firmware for the Flysky GT3B and Flysky GT3C is an open source firmware written by psx. This firmware has been through numerous revisions. The original intent of the firmware was to fix the bugs the stock firmware has, an example of a bug is the exponential function doesn't function like the traditional expo setting on other transmitters. Over time the firmware was completely rewritten to add functionality well beyond what is traditionally offered in any budget radio. Some of these additional features are: 1.2-8 Channels 2.60 Model Memory 3.Key Mapping (Assign ANY key to operate ANY function) 4.Timers 5.Adjustable Inactivity and Low Voltage Alarms 6.Dual ESC Mixing for MOA Crawlers, Tanks, Boats, Robots.... 7.4WS Mixing for RC vehicles that have front and rear axle steering 8.Channel Turn and Return Speed Weight: 303g Color: random send RC Parts & Accs: Transmitters Specifications: Channels: 3 Channels Model type: car/boat RF range: 2.40-2.48GHz Bandwidth: 500KHz Band: 160 RF power: less than 20DB 2.4G system: AFHDS Code type: GFSK Sensitivity: 1024 Low voltage warning: yes(less than 3.5V) DSC port: yes (USB; output: PPM) ST range: 90 TH range: 45(F:30, B:15) Charger port: yes ANT length: 26mm Power: 3.7V (800mAh) Weight: 303g Size: 157*116*258mm Certificate: CE0678, FCC Package Included: 1 x Flysky FS-GT3C Transmitter ​ Feedbacks from buyers Feedback From Buyer/price When Gold seller During past month -- -- Private thank you for these great goggles During past month -- -- Private An excellent transaction. Thank you l During past month SNAP-ON- E796CG NEEDLE NOSE PLIERS 7" INCH (#) US $28.00 As described! Thank you! super fast delivery During past month -- -- Private As described! Thank you! During past month Effetool EAS System 15000GS Universal Detacher EAS Security Detacher (#) US $96.50 Just as described During past month SNAP ON #3 PHILLIPS 10 3/4",27 C.M L RED-BLACK SOFT GRIP SCREWDRIVER SGDP631RA (#) US $38.00 Pleasure doing Business! During past month -- -- Private great item During past month Daniels Removal Tool Blue DRK16A-P/N:M81969/19-08 (#) US $26.00 Buena calidad a buen precio funciona 100% During past month -- -- Private Excellent eCRATERer, would use again. During past month -- -- Private GOOD eCRATERER During past month -- -- Private at no point did your site say that the pi 3 was not included with item During past month Raspberry Pi 3 Display Kit Set Includes 7 Touchscreen Power Supply Official Case (#) US $112.73 Alles super, gerne wieder
